Spitfire Motor - MW (MA6721BMW) by Fanimation

Image may not reflect selected features
No Image
Available
Spitfire Motor - MW
BASE PRICE:
$
326
98
/ / 1
($326.98 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
MA6721BMW
Dimensions:
Height: 12.00"
Width: 48.00"
Length: 48.00"
12 , 13.71
Availability:
    Energy Information at High Speed
    Airflow:
    6641 Cubic Feet per Minute
    Electricity Rate:
    61 Watts (excluded lights)
    Airflow Efficiency:
    108 Cubic Feet Per Minute Per Watt
    Description
    Details
    Downloads

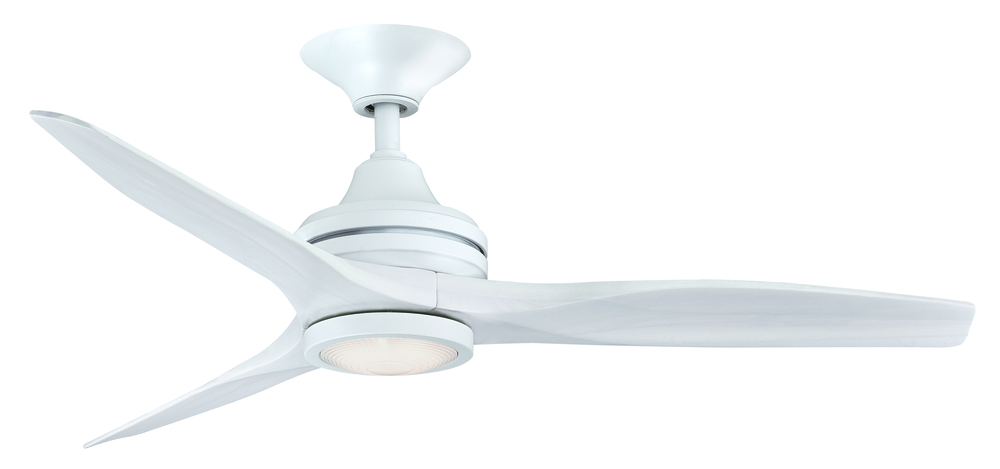

    The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
    Vendor Item #:
    MA6721BMW
    Category:
    Fans
    Subcategory:
    Fan Motor Without Blades
    Finish:
    White
    Style:
    Traditional
    Option:
    Damp Rated
    Voltage:
    10-99
    Number of Blades:
    3 Blades
    Location Rating:
    Damp Rated
    Category:
    Fan-Multi
    Finish:
    Matte White
    Option:
    Damp
    Family:
    Spitfire
    Voltage:
    120 V
    Additional Info:
    3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features , 5227 CFM on High , Limited Lifetime Warranty , Set of 3 Damp Rated blades with multiple finishes and 18 watt LED light kit available (sold separate , TR500 handheld remote with 23A battery included , WiFi or bluetooth compatible (required controls sold separately)
    Air Flow CFM:
    6641
    Air Flow Efficiency:
    108
    Amperage:
    0.52
    Blade Pitch:
    21
    Canopy:
    7.09 Dia x 2.2 H
    Diameter:
    8.07
    Down Rod Included:
    4.5
    Electricity Used:
    61
    Harmonized Codes:
    8414.51.3000
    Length:
    48, 60
    Light Kit Included:
    No
    Max Length:
    60
    Max Width:
    60
    Motor Fan Speed:
    3
    Motor RPM:
    130
    Motor Size:
    188 x 25
    Motor Type:
    AC
    Remote Control Included:
    TR500
    Ship Carton Height:
    10.91
    Ship Carton Length:
    14.49
    Ship Carton Width:
    10.47
    Ship Weight:
    17.85
    Sold By:
    Each
    Warranty:
    Limited Lifetime
    Weight:
    16.34
    Airflow Efficiency Low:
    175
    Airflow Efficiency Medium:
    128
    Avg Airflow Efficiency:
    92
    Avg CFM Energy:
    3776
    Avg Energy Use Watts:
    41
    Avg Estimated Yearly Energy Cost:
    12
    Avg Estimated Yearly Energy Cost on HIGH:
    17
    Canopy Diameter:
    7.09 Dia
    Canopy Height:
    2.2 H
    Cap Included:
    No
    Carton Cubic Feet:
    0.96
    Cartons Per Unit:
    1
    Case Height:
    10.91
    Case Length:
    14.49
    Case Quantity:
    1
    Case Weight Pounds:
    17.85
    Case Width:
    10.47
    CEC Uploaded:
    Yes
    Ceiling To Blade Edge:
    12
    Ceiling To Bottom:
    12 , 13.71
    CFM Low:
    2433
    CFM Medium:
    4614
    Compatible Accessories:
    DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, DR1-CPMW, SCK1-52MW, CCK6721MW
    Compatible Blades:
    B6720BL, B6720BN, B6720DF, B6720DWA, B6720N, B6720WE, B6720WK, B6720WW, B6720-48BL, B6720-48BN, B6720-48DF, B6720-48DWA, B6720-48MW, B6720-48N, B6720-48WE, B6720-48WK, B6720-48WW
    Compatible Controls:
    BTCR9, BTR9, CRL4WH, WFR50
    Compatible Light Kits:
    LK6721BMW
    Compatible Wall Controls:
    CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
    Country of Origin:
    China
    Current Draw High:
    0.52
    Current Draw Low:
    0.25
    Current Draw Medium:
    0.4
    Damp Rated:
    Yes
    DOE Classification:
    LSSD
    DOE-FTC Uploaded:
    Yes
    DOEFTC Uploaded:
    Yes
    Downrod Length:
    4.5
    Exempt from DOE Procedure:
    No
    Fan Energy Star:
    No
    Housing Diameter:
    8.07
    Included Control:
    TR500
    Included Control Type:
    Handheld
    Leadwire:
    80
    Max Ceiling Slope:
    19
    Max Watt:
    61
    Maximum Slope Degree:
    19
    Motor Finish Method Type:
    Painted
    Motor Reversible:
    Yes
    Number of Blades:
    3
    Number Of Speeds:
    3
    Regulated Product:
    Yes
    Reverse Switch Location:
    Motor Housing
    RPM High (VI):
    130
    RPM Low (II):
    54
    RPM Medium (IV):
    98
    Safety Rating:
    UL Approved, cUL Approved
    Voltage Cycles:
    60 hz
    Watts Low:
    14
    Watts Medium:
    36
    Manufactured By:
    Fanimation


    Additional Information:
    • 3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
    • 5227 Cfm On High
    • Limited Lifetime Warranty
    • Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Led Light Kit Available (sold Separately)
    • Tr500 Handheld Remote With 23a Battery Included
    • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
