Spitfire DC Motor - DZ (MAD6721DZ) by Fanimation

Image may not reflect selected features
No Image
Available

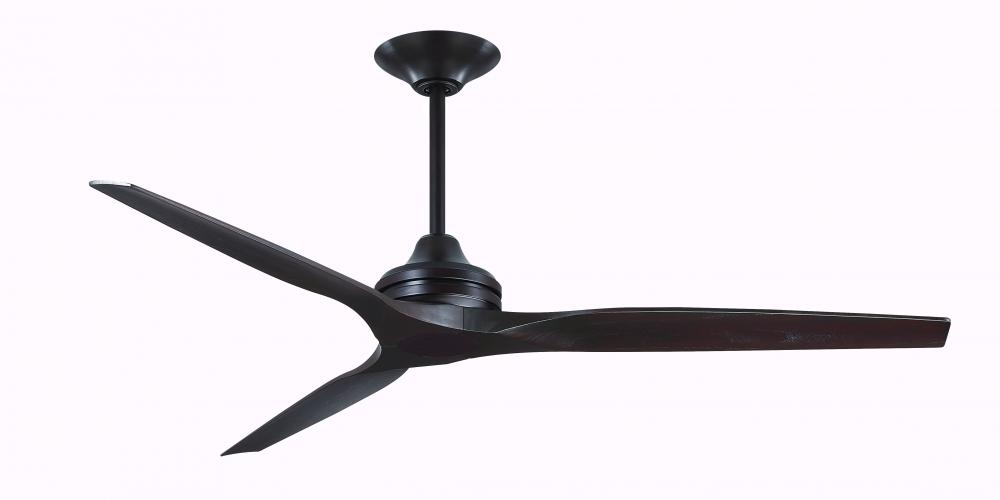

Spitfire DC Motor - DZ
additional image
BASE PRICE:
$
339
98
/ / 1
($339.98 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
MAD6721DZ
Dimensions:
Height: 21.08"
Width: 64.00"
Length: 64.00"
19.42 , 21.08
Availability:
    Energy Information at High Speed
    Airflow:
    12900 Cubic Feet per Minute
    Electricity Rate:
    33 Watts (excluded lights)
    Airflow Efficiency:
    386 Cubic Feet Per Minute Per Watt
    Description
    Details
    Downloads
    The Spitfire DC Custom features an exquisite three bladed design with many rich finish offerings to choose from. The Spitfire DC Custom is available in a 64, 72, 84 and 96 inch blade sweep (sold separately), and an optional LED light kit that features the correlated color temperature (CCT) Select functionality (sold separately). Handheld remote included. *Damp rated for indoor or outdoor use. *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
    Vendor Item #:
    MAD6721DZ
    Category:
    Fans
    Subcategory:
    Ceiling Fans
    Finish:
    Bronze
    Style:
    Traditional
    Option:
    Damp Rated
    Voltage:
    10-99
    Number of Blades:
    3 Blades
    Subfinish:
    Dark Bronze
    Location Rating:
    Damp Rated
    Wattage:
    8w
    Category:
    Fan-Multi
    Finish:
    Dark Bronze
    Option:
    Damp
    Family:
    Spitfire
    Voltage:
    120 V
    Additional Info:
    12900 CFM on High , 16 speed DC motor with reverse switch, fan speed, light controls, Fresh Air, Safe Exit, Sleep Timer and Home Away features , CHINA , Compatible with most smart home devices (recquired controls sold separately) , Energy Star Most Efficient 2022 , Set of (3) Damp rated blades with multiple finishes available and 18 watt CCT Select LED light kit available (sold separately) , TR305 handheld remote with 23A battery included
    Air Flow CFM:
    12900
    Air Flow Efficiency:
    386
    Amperage:
    0.47
    Blade Pitch:
    14
    Canopy:
    8.19 Dia x 2.2 H
    Diameter:
    8.07
    Down Rod Included:
    12
    Electricity Used:
    33
    Harmonized Codes:
    8414.51.3000
    Length:
    64, 72, 84, 96
    Light Kit Included:
    No
    Max Length:
    96
    Max Width:
    96
    Motor Fan Speed:
    16
    Motor RPM:
    112
    Motor Size:
    153 x 25
    Motor Type:
    DC
    Remote Control Included:
    TR305
    Ship Carton Height:
    10.94
    Ship Carton Length:
    14.37
    Ship Carton Width:
    10.43
    Ship Weight:
    15.61
    Sold By:
    Each
    Warranty:
    Limited Lifetime
    Weight:
    14.18
    Airflow Efficiency Low:
    1049
    Airflow Efficiency Medium:
    880
    Avg Airflow Efficiency:
    376
    Avg CFM Energy:
    7429
    Avg Energy Use Watts:
    20
    Avg Estimated Yearly Energy Cost:
    6
    Avg Estimated Yearly Energy Cost on HIGH:
    9
    Blade Pitch Degrees:
    14
    Canopy Diameter:
    8.19 Dia
    Canopy Height:
    2.2 H
    Cap Included:
    No
    Carton Cubic Feet:
    0.95
    Case Height:
    10.94
    Case Length:
    14.37
    Case Quantity:
    1
    Case Weight Pounds:
    15.61
    Case Width:
    10.43
    CEC Uploaded:
    Yes
    Ceiling To Blade Edge:
    19.42
    Ceiling To Bottom:
    19.42 , 21.08
    CFM Low:
    2958
    CFM Medium:
    7355
    Compatible Accessories:
    CCK6721DZ, DR1-12DZ, DR1-18DZ, DR1-24DZ, DR1-36DZ, DR1-48DZ, DR1-60DZ, DR1-72DZ, DR1-CPDZ, SCK1-52DZ
    Compatible Blades:
    B6720-64BL, B6720-64BN, B6720-64DF, B6720-64DWA, B6720-64MW, B6720-64N, B6720-64WE, B6720-64WK, B6720-64WW, B6720-72BL, B6720-72BN, B6720-72DF, B6720-72DWA, B6720-72MW, B6720-72N, B6720-72WE, B6720-72WK, B6720-72WW , B6720-84BL, B6720-84BN, B6720-84DF, B6720-84DWA, B6720-84MW, B6720-84N, B6720-84WE, B6720-84WK, B6720-84WW, B6720-96BL, B6720-96BN, B6720-96DF, B6720-96DWA, B6720-96MW, B6720-96N, B6720-96WE, B6720-96WK, B6720-96WW
    Compatible Light Kits:
    LK6721BDCDZ
    Compatible Wall Controls:
    TW306
    Country of Origin:
    China
    Current Draw High:
    0.47
    Current Draw Low:
    0.06
    Current Draw Medium:
    0.14
    Damp Rated:
    Yes
    DOE Classification:
    LSSD
    DOEFTC Uploaded:
    Yes
    Downrod Length:
    12
    Exempt from DOE Procedure:
    No
    Fan Energy Star:
    Yes
    Housing Diameter:
    8.07
    Included Control:
    TR305
    Included Control Type:
    Handheld
    Leadwire:
    80
    Light Kit Energy Star:
    Yes
    Max Ceiling Slope:
    19
    Max Watt:
    33
    Maximum Slope Degree:
    19
    Motor Finish Method:
    Painted
    Motor Finish Method Type:
    Painted
    Motor Reversible:
    Yes
    Number of Blades:
    3
    Number Of Speeds:
    16
    Regulated Product:
    Yes
    Reverse Switch Location:
    Control
    RPM High (VI):
    112
    RPM Low (II):
    29
    RPM Medium (IV):
    67
    Safety Rating:
    UL Approved, cUL Approved
    Voltage Cycles:
    60 hz
    Watts Low:
    3
    Watts Medium:
    8
    Manufactured By:
    Fanimation


    Additional Information:
    • 12900 Cfm On High
    • 16 Speed Dc Motor With Reverse Switch, Fan Speed, Light Controls, Fresh Air, Safe Exit, Sleep Timer And Home Away Features
    • Compatible With Most Smart Home Devices (recquired Controls Sold Separately)
    • Energy Star Most Efficient 2022
    • Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Cct Select Led Light Kit Available (sold Separately)
    • Tr305 Handheld Remote With 23a Battery Included
